Design for 3D Printing

I've created this site to collect in one place information which can help any engineer or maker in creating new designs. Site will be aimed at mainly additive manufacturing but it will also gather core knowledge any maker or engineer would usually search for while designing next best thing

You will find here:

  • Guides, Tips and tricks helpful in designing for 3D Printing
  • basic engineering tables
  • 3D printer parts and consumable reviews
  • Repository of my models

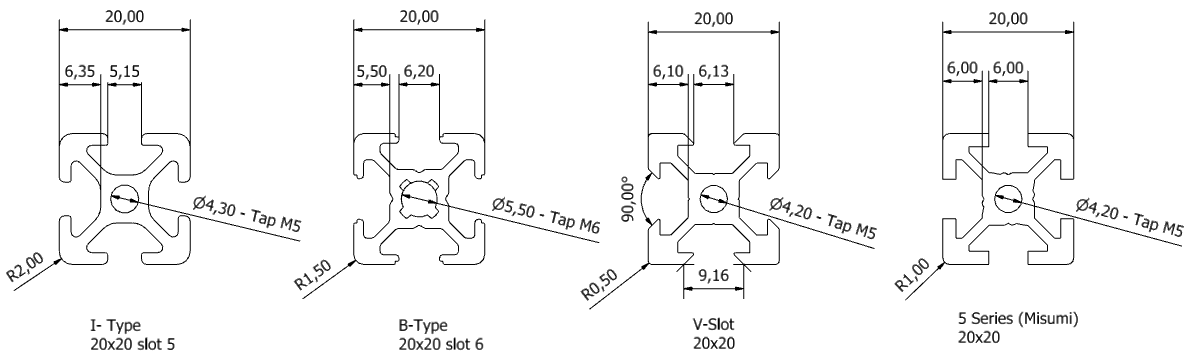

Battle of the profiles - Comparison 20x20 profiles

Aluminium profiles - currently THE material to build your printer, CNC or any other contraption with. Unfortunately lack of clear standards and manufacturers innovation lead to creation of few variants with some distinct pros and cons.

Designs created for One profile may fail when u use different one or you will need to change some components to accommodate features of specific profile type.

Currently in common use (3d printing construction) there are 4 main types of profiles:

  • I -Type
  • B-Type
  • V-Slot
  • 5 Series (Misumi)

Metric Nuts

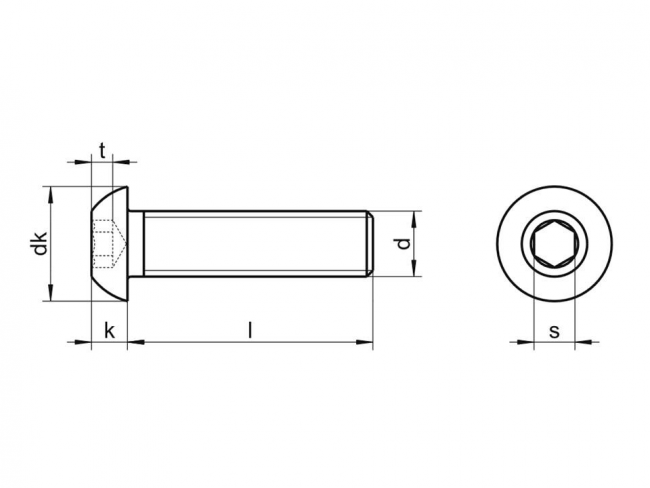

Button Head screws

Metric Tap Hole sizes

Thread Drill size for tapping standard metric threads Clearance hole
M1 0.75 1.2
M1.2 0.95 1.4
M1.4 1.1 1.6
M1.6 1.5 1.8
M1.8 1.4 2
M2 1.6 2.4
M2.2 1.7 2.8
M2.5 2 2.9
M3 2.5 3.4
M3.5 2.9 3.9
M4 3.3 4.5
M5 4.2 5.5
M6 5 6.6
M8 6.8 9
M10 8.5 11
M12 10.2 13.5
M14 12 15.5
M16 14 17.5
M18 15.5 20
M20 17.5 22
M22 19.5 24
M24 21 26
M27 24 30
M30 26.5 33

More Articles ...

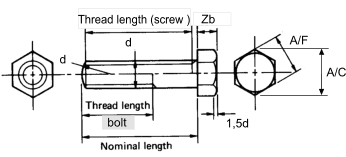

  1. Metric Bolts - coarse thread
  2. Proto-Pasta Bronze Filled Composite PLA
  3. MKOEM Silk Gold PLA
